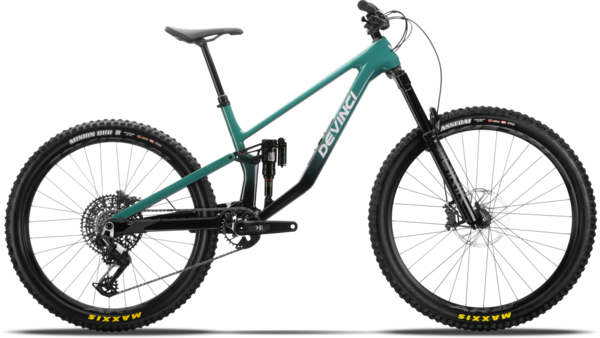

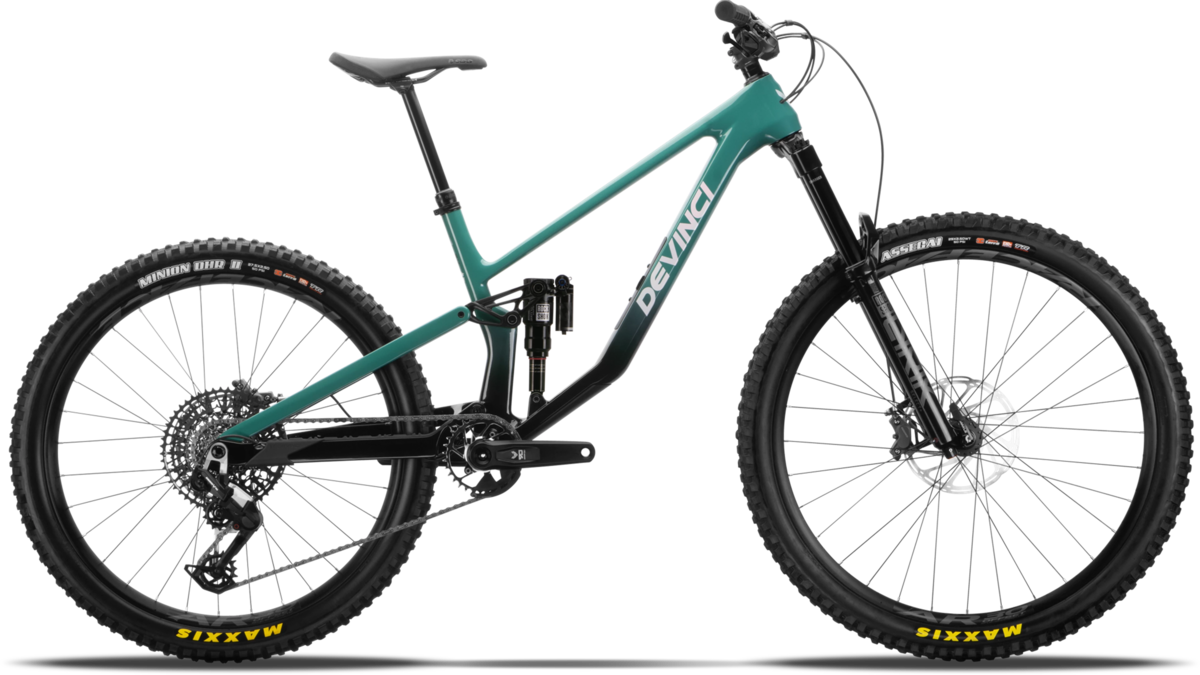

Devinci Troy Carbon Eagle 90 12S
$6,999.00
Details
Any trail. Every ride.
No excuse.
The everyday crusher of all trails. This Troy is our most advanced frame yet. But don’t let its Split Pivot design, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack. Our quiver killer has a new set of instincts. Take one for a ride and see how far you can push it. You might never come back.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (MM) | 390 | 420 | 450 | 470 |
| Seat Angle (DEG) | 78.1 | 77.8 | 76.8 | 76.2 |
| Head Angle (DEG) | 64 | 64 | 64 | 64 |
| Top Tube (MM) | 568 | 594 | 631 | 656 |
| Reach (MM) | 440 | 460 | 480 | 500 |
| Chainstay (MM) | 435 | 435 | 440 | 445 |
| Wheel Base (MM) | 1206 | 1230 | 1260 | 1289 |
| BB Height (MM) | 343 | 343 | 343 | 343 |
| Standover Height (MM) | 708 | 708 | 708 | 708 |
| Stack (MM) | 612 | 622 | 631 | 640 |
| Head Tube (MM) | 95 | 105 | 115 | 125 |
| Rider Height (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Carbon OSC 150mm |
|---|---|
| Fork | RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset |
| Rear Shock | Rockshox Super Deluxe Select+ | 185x55 |
| Rims | RaceFace AR30 29 | 30mm inner | TR |
| Hubs |
Front: DT Swiss 370 Classic | 15x110 Boost | 6bolts | 32H Rear: DT Swiss 370 Classic | 12x148 Boost |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Assegai | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra Rear: Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra |
| Bottom Bracket | SRAM DUB 73mm Threaded |
| Crankset | Sram Eagle 90 | DUB | 12s | 32T | 165mm |
| Shifters | SRAM Eagle 90 | 12s |
| Rear Derailleur | SRAM Eagle 90 | 12s |
| Cassette/Freewheel | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| Chain | SRAM GX | T-Type | 12s |
| Brakes | SRAM Code Bronze |
| Rotors | SRAM Centerline | 200mm |
| Handlebars | RaceFace Turbine R35 | B:35mm | R:40mm | W:800mm |
| Tape/Grips | Devinci | w/lock-on |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Saddle | SDG BELAIR 3.0 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Sea Green / Small / 29-inch front / 27.5-inch rear | 883385241790 | FV25091211 |
| Sea Green / Medium / 29-inch front / 27.5-inch rear | 883385248287 | FV25091311 |
| Sea Green / Large / 29-inch front / 27.5-inch rear | 883385236840 | FV25091411 |
| Sea Green / X-Large / 29-inch front / 27.5-inch rear | 883385244401 | FV25091511 |
