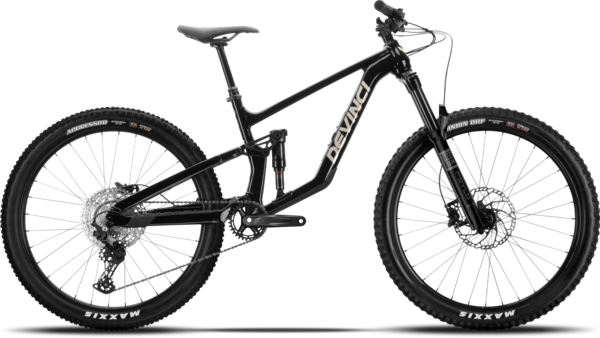

Devinci Troy ST Deore
$3,699.00
Details
Lightning with a bottle cage.
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
| Frame Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (MM) | 370 | 400 | 420 | 450 | 470 |
| Seat Angle (DEG) | 78.8 | 78.4 | 78.6 | 77.3 | 77.1 |
| Head Angle (DEG) | 65 | 65 | 65 | 65 | 65 |
| Top Tube (MM) | 537 | 563 | 593 | 630 | 654 |
| Reach (MM) | 423 | 445 | 468 | 488 | 508 |
| Chainstay (MM) | 435 | 435 | 435 | 445 | 445 |
| Wheel Base (MM) | 1158 | 1180 | 1221 | 1256 | 1280 |
| BB Height (MM) | 340 | 340 | 336 | 336 | 336 |
| Standover Height (MM) | 727 | 727 | 727 | 727 | 727 |
| Stack (MM) | 571 | 571 | 615 | 623 | 632 |
| Head Tube (MM) | 95 | 95 | 105 | 115 | 125 |
| Rider Height (CM) | 150 - 161 | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 130mm |
|---|---|
| Fork | RockShox Psylo Silver RC | 140mm | 44Offset | 1 Token |
| Rear Shock | RockShox Deluxe Select 185x47.5 Trunnion |
| Rims | V2 Comp 27.5 | 29mm inner | TR |
| Hubs |
Front: Formula DC-711 | Sealed | 6bolts | TA 15x110mm Rear: Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Minion DHF | 27.5x2.5WT | EXO | TR | 3C Rear: Maxxis Aggressor | 27.5x2.5WT | EXO | TR | Dual Compound |
| Bottom Bracket | Shimano BB MT501 | BSA | 68/73mm |
| Crankset | Shimano MT5121 | 32T | 170mm |
| Shifters | Shimano Deore M6100 | 12s | I-spec EV |
| Rear Derailleur | Shimano Deore M6100 | 12s |
| Cassette/Freewheel | Shimano Deore M6100 | 12s | 10-51T | Microspline |
| Chain | KMC X12 | 12s |
| Brakes | Shimano Deore M4100/MT410 | 2 Pistons |
| Rotors | Shimano RT66 | 203mm |
| Handlebars | V2 Pro | B:35mm | R:25mm | W:780mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | V2 Pro | B:35mm | L:50mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | TranzX Dropper | 31.6mm | 1x Lever |
| Saddle | Devinci |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black Dust / X-Small / 27.5-inch | 883385260135 | FV240811A3 |
| Black Dust / Small / 27.5-inch | 883385260265 | FV240812A3 |
