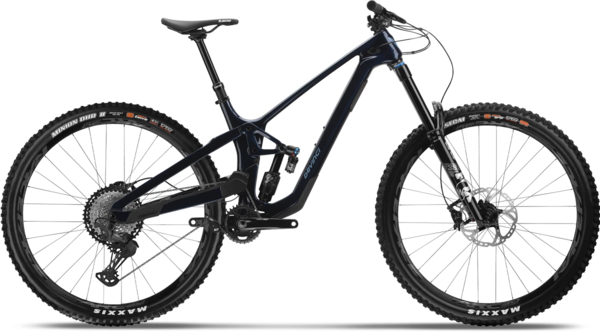

Devinci Spartan Carbon XT 12S LTD
$7,599.99 - $9,499.99
$9,499.99
Details
There's a new standard for speed. Our long-travel enduro weapon brings Enduro World Series pace to everything you ride, with plenty of room for a water bottle. Right away, you'll notice the thrust and stability of a rearward axle path. Pair that with a 160mm Split Pivot design that's fully active under braking and you'll experience time-warping levels of control. For those about to blast, Spartan HP is the rocket ship you've been waiting for. Hope you brought goggles.
High
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| ST (mm) | 390 | 420 | 460 | 495 |
| SA | 77.7° | 77.6° | 77° | 76.5° |
| HA | 65° | 65° | 65° | 65° |
| TT (mm) | 585 | 608 | 637 | 665 |
| REACH (mm) | 450 | 470 | 490 | 510 |
| CS (mm) | 421 | 421 | 426 | 431 |
| WB (mm) | 1204 | 1228 | 1258 | 1287 |
| BBH (mm) | 351 | 351 | 351 | 351 |
| SOH (mm) | 746 | 746 | 746 | 746 |
| STACK (mm) | 617 | 626 | 635 | 644 |
| HT (mm) | 95 | 105 | 115 | 125 |
Low
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| ST (mm) | 390 | 420 | 460 | 495 |
| SA | 77.1° | 77° | 76.5° | 76° |
| HA | 64.5° | 64.5° | 64.5° | 64.5° |
| TT (mm) | 587 | 610 | 639 | 668 |
| REACH (mm) | 445 | 465 | 485 | 505 |
| CS (mm) | 425 | 425 | 430 | 435 |
| WB (mm) | 1207 | 1232 | 1261 | 1290 |
| BBH (mm) | 344 | 344 | 344 | 344 |
| SOH (mm) | 740 | 740 | 740 | 740 |
| STACK (mm) | 621 | 630 | 639 | 648 |
| HT (mm) | 95 | 105 | 115 | 125 |
| Size | Height (cm) |
|---|---|
| Small | 160 - 170cm |
| Medium | 169 - 179cm |
| Large | 178 - 188cm |
| X-Large | 187 - 198cm |
Specs
| Frame | Carbon DMC-G 160mm |
|---|---|
| Fork | Fox 38 Performance Elite Grip2 180 | 44 Offset |
| Rear Shock | Fox Float X2 Performance Elite Trunnion | 0.3Vspacer|205x65 |
| Rims | RaceFace ARC30 | 30mm inner | TR |
| Hubs |
Front: RaceFace Vault | 6bolts | TA 15x110mm Rear: RaceFace Vault | 6bolts | TA 12x157mm | Microspline |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Assegai | 29x2.5wt | 3C MaxxGrip DoubleDown TR Rear: Maxxis Minion DHRII | 29x2.4wt | 3C MaxxGrip DoubleDown TR |
| Bottom Bracket | Shimano MT801 | BSA | 68/73mm |
| Crankset | Shimano XT M8130-1 | 32T | SuperBoost 157 |
| Shifters | Shimano XT M8100 | 12s | I-spec EV |
| Rear Derailleur | Shimano XT M8100 | 12s |
| Cassette/Freewheel | Shimano XT M8100 | 12s | 10-51T | Microspline |
| Chain | Shimano M7100 | 12s |
| Brakes | Shimano XT M8120/M8100 | 4 Pistons |
| Rotors | Shimano RT76 | 203mm |
| Handlebars | RaceFace Next R35 | B:35mm | R:20mm | W:800mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis | 34.9mm |
| Saddle | SDG BELAIR 3.0 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blue Secret / Small | 883385210147 | FV22044221 | |
| Blue Secret / Medium | 883385210178 | FV22044321 | |
| Blue Secret / Large | 883385210192 | FV22044421 | |
| Blue Secret / X-Large | 883385210215 | FV22044521 | 210000020560 |
| Skyscraper Silver / Small | 883385210154 | FV22044222 | |
| Skyscraper Silver / Medium | 883385205525 | FV22044322 | |
| Skyscraper Silver / Large | 883385206355 | FV22044422 | |
| Skyscraper Silver / X-Large | 883385210222 | FV22044522 |
